Pinnacle³ Auto-Planning is designed to simplify and accelerate IMRT & VMAT planning. It has smart automation tools that enable the user to generate high quality plans quickly, and with limited intervention. These plans can then be evaluated against agreed clinical goals using intuitive dashboards, called Scorecards that provide at-a-glance information regarding plan quality, facilitating consistency of treatments throughout the department.

A study in head-and-neck cancer

In this study¹ researchers at Radboud University Nijmegen Medical Center, Nijmegen, The Netherlands and at Philips Healthcare and Philips Research, investigated whether the Auto-Planning feature, released with Pinnacle 9.10 (Philips Healthcare) is able to create clinically acceptable oropharynx IMRT treatment plans with only one push of the button.

Twenty-five oropharynx cancer patients who were treated with a simultaneously integrated boost (SIB) IMRT technique at the Radboud University Nijmegen Medical Center, were re-planned using the Auto-Planning module. The same beam set-up (7 uniformly spaced coplanar beams) and contours as in the original clinical plans were employed.

Dramatic reduction in dose and planning time

The average maximum dose of the cord and of the brainstem was significantly reduced to 3.9 +/- 3.3 Gy and 6.8 +/- 4.8 Gy, respectively. The average mean dose to the oral cavity, the larynx and the mandible was significantly reduced to 3.6 +/- 3.3 Gy, 2.5 +/- 4.3 Gy and 2.2 +/- 1.8 Gy, respectively. Total planning time could be reduced from about 4 hours to less than 30 minutes.

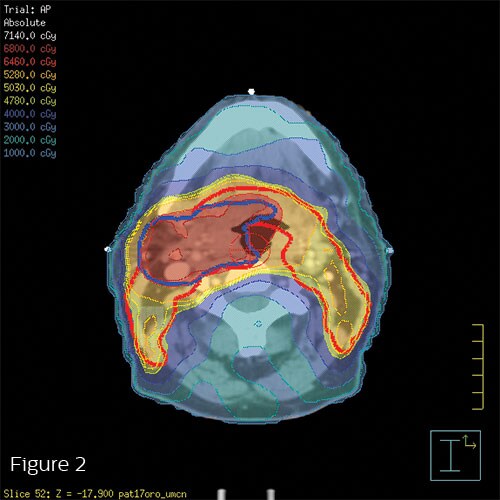

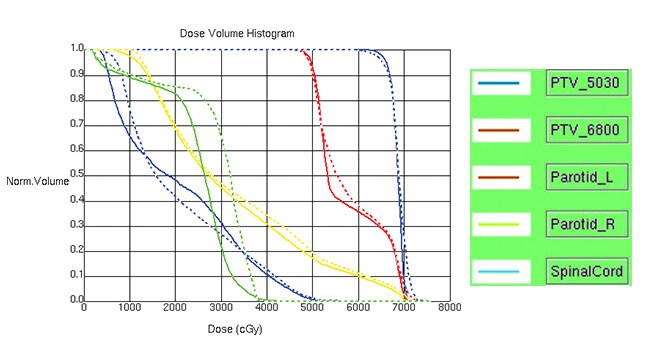

Figure 1 and 2 show a typical result of a patient plan for the dose distribution and dose volume histograms (DVHs), respectively.
