IntelliVue XDS Mounting solution

IntelliVue XDS GCX Dual Display height adjustable Wall Mount

Mounting solution

Nájsť podobné výrobky

Learn more about the options available to mount the IntelliVue XDS with Dual Display on a wall.

Features

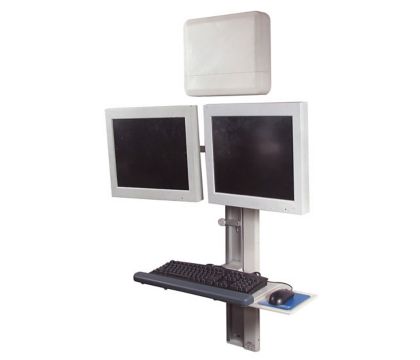

IntelliVue XDS with Dual Display
IntelliVue XDS with Dual Display

IntelliVue XDS with Dual Display

The configuration shown requires:GCX P/N: WMM-0005-04: Flush swivel mount; GCX P/N: FLP-0008-11: Dual flat panel bracket with adjustable tilt/swivel; GCX P/N: WM-0010-67:Keyboard flush mount. Keyboard folds up flat against the wall; GCX P/N: PH-0066-47: Keyboard tray with padded wristrest and slide-out left/right mouse trays; GCX P/N: WC-0002-03: 13" (325mm) Wall Channel for XDS PC; GCX P/N: FLP-0001-10: Flush CPU Wall Mount for VESA standard 75mm/100mm mounting interface; GCX P/N: FWM-0001-25: 36"(900mm) VHC Height Adjustable Wall Channel for 28-32 lbs (12.7-14.5 kg), 12" (305mm) vertical travel.

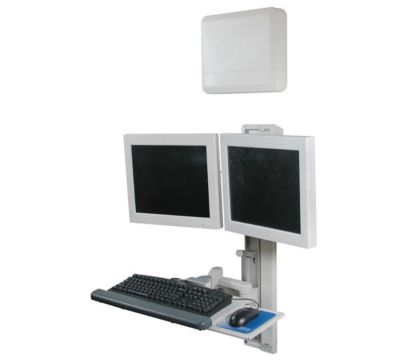

IntelliVue XDS with Dual Display1
IntelliVue XDS with Dual Display

IntelliVue XDS with Dual Display

The configuration shown requires: GCX P/N: WMM-0005-04: Flush swivel mount; GCX P/N: FLP-0008-11: Dual flat panel bracket with adjustable tilt/swivel. GCX P/N: WMM-0005-07: 12"(300mm) x 8"(200mm) articulating keyboard arm; GCX P/N: WM-0010-65: Keyboard folding bracket. Keyboard folds up flat against the wall; GCX P/N: PH-0066-47: Keyboard tray with padded wristrest and slide-out left/right mouse trays; GCX P/N: WC-0002-03: 13" (325mm) Wall Channel for XDS PC; GCX P/N: FLP-0001-10: Flush CPU Wall Mount for VESA standard 75mm/100mm mounting interface; GCX P/N: FWM-0001-26: 36"(900mm) VHC Height Adjustable Wall Channel for 32-36 lbs (14.5-16.4 kg), 12" (305mm) vertical travel.

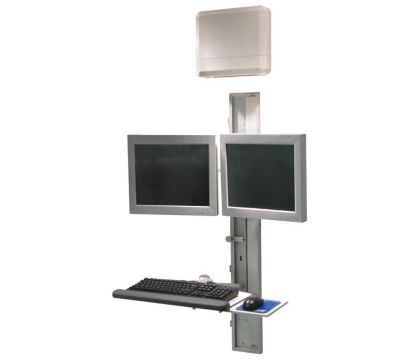

IntelliVue XDS with Dual Display2
IntelliVue XDS with Dual Display

IntelliVue XDS with Dual Display

The configuration shown requires: GCX P/N: WMM-0005-04: Flush swivel mount; GCX P/N: FLP-0008-11: Dual flat panel bracket with adjustable tilt/swivel; GCX P/N: WM-0010-67: Keyboard flush mount. Keyboard folds up flat against the wall; GCX P/N: PH-0066-47 Keyboard tray with padded wristrest and slide-out left/right mouse trays; GCX P/N: WC-0002-03: 13" (325mm) Wall Channel for XDS PC; GCX P/N: FLP-0001-10: Flush CPU Wall Mount for VESA standard 75mm/100mm mounting interface; GCX P/N: FWM-0001-15: 48"(1200mm) VHC Height Adjustable Wall Channel for 28-32 lbs (12.7-14.5 kg), 18" (457mm) vertical travel.

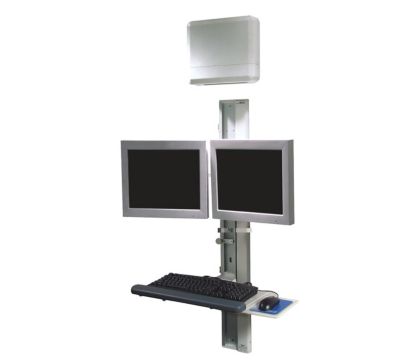

IntelliVue XDS with Dual Display3
IntelliVue XDS with Dual Display

IntelliVue XDS with Dual Display

The configuration shown requires: GCX P/N: WMM-0005-04: Flush swivel mount; GCX P/N: FLP-0008-11: Dual flat panel bracket with adjustable tilt/swivel; GCX P/N: WMM-0005-07: 12"(300mm) x 8"(200mm) articulating keyboard arm; GCX P/N: WM-0010-65: Keyboard folding bracket. Keyboard folds up flat against the wall; GCX P/N: PH-0066-47: Keyboard tray with padded wristrest and slide-out left/right mouse trays; GCX P/N: WC-0002-03: 13" (325mm) Wall Channel for XDS PC; GCX P/N: FLP-0001-10: Flush CPU Wall Mount for VESA standard 75mm/100mm mounting interface; GCX P/N: FWM-0001-16: 48"(1200mm) VHC Height Adjustable Wall Channel for 32-36 lbs (14.5-16.4 kg), 18" (457mm) vertical travel.
